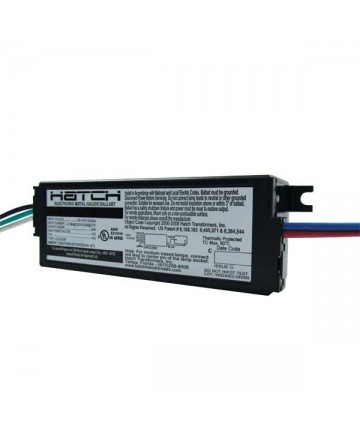

Hatch Transformers MC39-1-F-UNNSL - 39 WATT MICRO SLIM SERIES 1-LAMP ELECTRONIC HID BALLAST
39W - Universal 120V-277V - 1 Lite - Ceramic Metal Halide - Micro Slim - With Feet - Leads Out Both Sides - Electronic HID Ballast EHID
Hatch Transformer 39 Watt Micro Slim Profile One Lamp 39W - Universal 120V-277V Ceramic Metal Halide Ballast
Ceramic Metal Halide Ballast Electronic HID Features:
Low Voltage Lamp Shutdown
Short Circuit Protection
Micro Processor Controlled: Safety Shut Down Features, Superior Hot Lamp Restrike
High Power Factor, 100% Factory Tested, High Reliability
Open Circuit, No Lamp, Hot Lamp Shutdown, Retry and Ignition Failure Protection
Leads Out Both Sides with Feet
Environmental Specifications:
Maximum Case Temperature: 80?C at "T" point
Minimum Starting Temperature: -30?C
Sound Rating: A
Safety Listing: Class Type 1 outdoor, RoHS Compliant
Specification sheet:
Hatch Transformers MC39-1-F-UNNS spec sheet can be reviewed under "Additional Information"
Additional Info
Additional Information
| Manufacturer | Hatch Transformers |
|---|---|
| MPN | MC39-1-F-UNNS |
| Collection | Electronic HID Ballasts (EHID) |
| UPC | 797281210333 |
| Spec. Sheet | Click Here |
| Energy Star Rated | No |
| UL Rated | Type 1 Outdoor |
| ANSI Code | M/C156 |
| Type | Electronic |
| Ballast Type | Ceramic Metal Halide |
| Housing / Case Style | Micro Slim |
| Mounting | With Feet |
| Leads | Leads Out Both Sides |
| Output Power (Wattage / Equivalent) | 39 Watts |
| Input Voltage | 120 - 277 VAC Universal |
| Number of Lights | 1-Light |
| Power Factor | 0.95 |
| Length (MOL) | 5.50 Inches |
| Width | 1.70 Inches |
| Height | 1.21 Inches |
| RoHS COMPLIANT (Mercury Free) | Yes |
| Warranty | 5 Years |
| Master / Inner Carton Quantity | 50 |
| Input Amps | 0.37A / 0.16A |
