Satco | 80/1497 | Fluorescent Fixed For Slimline T8 / T12 Single Pin Socket Lampholder

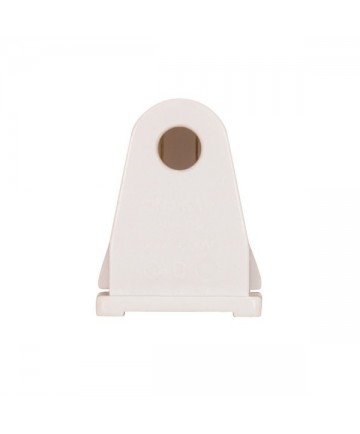

The Satco 80/1497 (also known as 80-1497) is a fixed (stationary) single-pin slimline lampholder designed for T8 and T12 fluorescent or compatible LED tubes. It features a shallow base, a slide-on quick-wire design, and is built to withstand wet and damp locations.

Technical Specifications

• Component Type: Fixed / Stationary End
• Lamp Compatibility: T8 & T12 Slimline Single-Pin
• Electrical Rating: 660 Watts / 1000 Volts
• Mounting Style: Slide-on for 20-gauge metal panels
• Environment Rating: Wet and Damp locations
• Dimensions: 1.25" Width x 1.75" Height
• Certifications: cULus Listed

Key Application Details

• The Companion Part: Fluorescent slimline tubes require a spring-loaded socket on one side to push the tube in, and a fixed socket on the other side to lock it into place. The Satco 80/1497 serves as the fixed end. If you need the matching spring-loaded plunger end, you will look for the Satco 80/1496.
• Wiring Compatibility: It uses a quick-wire system for rapid-start ballasts or direct-wire bypass LED setups.
