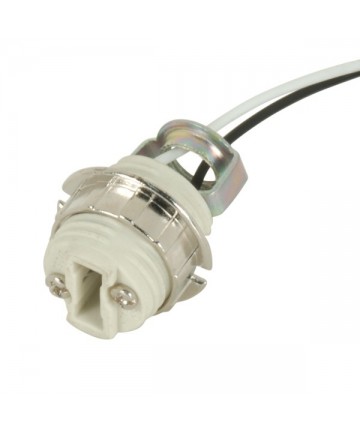

Satco | 80/1589 | G9 Socket Threaded Porcelain Lamp Socket with 21 inch Leads & Hickey

The Satco 80/1589 (also cataloged as 80-1589) is a threaded G9 base porcelain lamp socket designed primarily for halogen bulb applications. It features integrated 21-inch wire leads, a double-leg hickey bracket, and a removable outer shade ring.

Key Specifications

• Base Type: G9 (bi-pin halogen/LED)Material: High-temperature porcelain housing
• Electrical Ratings: Supports up to 660W maximum wattage and a 250V voltage rating
• Wiring: Includes 21-inch UL 10362 high-temperature insulated wire leads
• Mounting style: 1/8 IP hickey inside extrusion with a double-leg design
• Dimensions: 0.75" width by 1.38" height

Functional Features

• Threaded Exterior: The outside shell is threaded to accept a metal ring. This ring tightens down to securely hold glass shields, globes, or decorative shades in place on a light fixture.
• Hickey Mount: The 1/8 IP bracket on the bottom allows the socket to easily screw onto standard hollow threaded pipes found inside lamps and chandeliers
