Product Description
Details

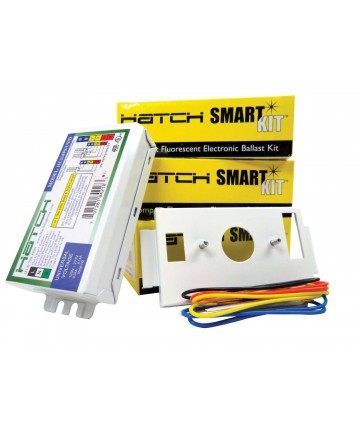

Hatch HC213/PS/UV/K Hatch 13-Watt Compact Fluorescent SmartKit 120-277 VAC Universal 1 or 2 Lamps Bottom and Side Terminals with Feet and Studs
Smart Kit Includes::
• Electronic Universal Programmed Start Ballasts.
• Low profile cases to fit most fixtures.
• Simple mounting with color coded, bottom and side push-in connectors.
• THD under 10% in most applications.
• Maximum case temperature of 90° C which is beneficial when used in recessed fixture applications.
• Wires, wire removal tool & adapter plate with studs for maximum flexibility.
• Mounting plate uses simple crimp tabs to mount to ballast. There are no small screws or mounting hardware to lose.
• Ability to use a single ballast for one or two lamp applications
Equivalent or replaces:
Hatch Transformers HR1300-277BF
GE BIAX: F13DBX or F13TBX
OSRAM: CF13DD/E or DULUX D/E 13
PHILIPS: PL-C 13W/4P
Additional Info
Additional Information
| Manufacturer | Hatch Transformers |
|---|---|
| MPN | HC213/PS/UV/K |
| Collection | Compact Fluorescent Electronic Ballast |
| UPC | 797281852137 |
| Energy Star Rated | No |
| California Status | Compliant |
| Type | Electronic |
| Ballast Type | Compact Fluorescent |
| Housing / Case Style | Low Profile |
| Mounting | Bottom Feed With Studs |
| Leads | Leads Bottom Feed |
| Output Power (Wattage / Equivalent) | 13 Watts |
| Input Voltage | 120 - 277 VAC Universal |
| Finish | White |
| Length (MOL) | 4.32'' inches |
| Width | 2.4'' inches |
| Height | 1.00'' inches |
| RoHS COMPLIANT (Mercury Free) | Yes |
| Warranty | 5 Years |
| Advance Equivalent | ICF-2S13-H1-LD |
| GE Equivalent | GEC213-MVPS-SE, GEC213-MVPS-BES |
| Hatch Equivalent | HR1300-277BF |
| Keystone Equivalent | KTEB-213-UV-TP-PSD |
| Osram Equivalent | QTP 1/2x13CF/UNV |
| Robertson Equivalent | PSM213CQMV |
| Universal Equivalent | C213UNVSE000K/BE/BES |
| Master / Inner Carton Quantity | 20 |
| Bulb Base Type | 4-Pin |
| Bulb Type | Compact Fluorescent (CFL) |
