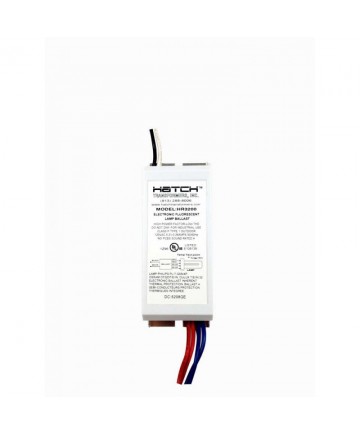

Hatch Transformers HR2600 Hatch 26-Watt 4-Pin 120-Volt 1-Lite Leads out Both Ends CFL Electronic Ballast *** FREE SHIPPING ***
26W - 4 Pin - 120 Volt - 1 Lite - Hatch CFL Electronic Ballast
Hatch Transformer HR Low Profile One Lamp 26W 4-pin CFL Hardwire Ballast
Compact Fluorescent Hardwire Ballast Features:
Auto Restart After Hot Relamp, Deactive Lamp Protection Circuit, Flicker Free Operation,
High Power Factor, Low THD, 100% Factory Tested, High Reliability, No Audible Noise,
True Preheat Starting, No Starting Aid Required, Energy Efficient, High Frequency Operation
Solid State, Moisture and Shock Resistant, No PCBs, Leads Out Both Sides with Feet
Environmental Specifications:
Maximum Case Temperature: 70?C at "T" point
Minimum Starting Temperature: -25?C
Sound Rating: A+
Operating Humidity: 95% relative humidity, non-condensating
Environmental Protection: Epoxy Sealed for moisture resistance and shock vibration resistance
Safety Listing: Class P Type 1 outdoor
Equivalent or replaces:
Hatch Transformers HR2600 replaces
GE2D: F28/2D/4P
GE BIAX: F26DBX or F26TBX
OSRAM: CF26DD/E or CF26DT/E/IN or DULUX D/E 26 or DULUX T/E/IN26
PHILIPS: PL-C 26W/4P or PL-T 26W/4P
Additional Info
Additional Information
| Manufacturer | Hatch Transformers |
|---|---|
| MPN | HR2600 |
| Collection | Electronic Compact Flourescent Ballast |
| UPC | 797281422606 |
| Spec. Sheet | Click Here |
| Energy Star Rated | No |
| UL Rated | Type 1 Outdoor |
| California Status | Compliant |
| Type | Electronic |
| Ballast Type | Compact Fluorescent |
| Housing / Case Style | Low Profile |
| Mounting | With Feet |
| Leads | Leads Out Both Sides |
| Output Power (Wattage / Equivalent) | 26 Watts |
| Input Voltage | 120 VAC |
| Number of Lights | 1-Light |
| Power Factor | 0.99 |
| Finish | White |
| Length (MOL) | 4.50 Inches |
| Width | 1.75 Inches |
| Height | 1.00 Inches |
| RoHS COMPLIANT (Mercury Free) | Yes |
| Warranty | 5 Years |
| Master / Inner Carton Quantity | 50 |
| Input Amps | 0.21 Amps |
| Bulb Base Type | 4-Pin |
| Bulb Type | Compact Fluorescent (CFL) |
